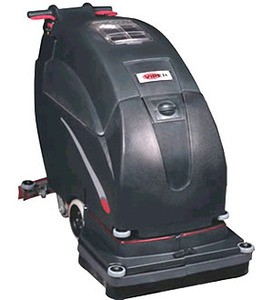

Mid size Automatic Scrubbers
STANDARD FEATURES
"Platform" design
Simple, easy to use controls
Rotationally molded housing
Variable pad pressure
Variable speed transaxle drive
Forward and reverse drive
H.D. cast aluminum squeegee assembly
TECHNICAL SPECIFICATIONS
| Specification |
FANG26T |
FANG28T |
| Solution Tank |
17gal (64.3L) |
17gal (64.3L) |
| Recovery Tank |
17gal (64.3L) |
17gal (64.3L) |
| Cleaning Path |
26" (66cm) |
28" (71.1cm) |
| Pad Diameter |
13" (33cm) x2 |
14" (35.6 cm) x2 |
| Pad Pressure |
Up to 150lb (68kg) |
Up to 150lb (68kg) |
| Squeegee Width |
32" (81.3 cm) |
36" (91.4 cm) |
| Speed Control |
Variable |
Variable |
| Coverage Rate |
26,000 sq'/hr |
28,000 sq'/hr |
| Drive System |
1/3 hp transaxle |
1/3 hp transaxle |
| Brush Motors |
3/4 hp, 200 rpm |
3/4 ho, 200 rpm |
| Vacuum Motor |
3-stage |
3 stage |
| Waterlift |
67-inches |
67- inches |
| Batteries |
185 amp/hr (x2) |
185 amp/hr (x2) |
| Run Time per Charge |
3-3.5 hrs (est) |
3-3.5hrs (est) |
| Decibel Level |
71 dB(A) |
71dB(A) |
| Weight w/o Batteries |
287 lb (130kg) |
291lb (132kg) |
| Length |
55.5" (141cm) |
55.5" (141cm) |
| Width |
27.9" (71cm) |
29.9" (75.9cm) |
| Height |
39.4" (100cm) |
39.4" (100cm) |
OPTIONAL ACCESSORIES
Poly Scrub Brush VF83127 (x2)
|
